Open source · MIT · v0, early, and deployed

A messenger you pair in person

Keyweave is a secure messenger with an unusual trust model. Two people pair in person by pointing one camera at another screen, which streams a signed contact card as an animated QR code. A camera pointed at a screen cannot be intercepted from the network, so physical presence is the authentication, which is the part end-to-end-encrypted systems usually leave to the user: Signal's safety numbers, PGP's web of trust. After pairing, messages travel over ordinary clearnet as sealed ciphertext through a dumb mailbox relay.

The app runs at keyweave.localfirstlab.org, which is the application itself and not a page about it. Its relay runs on a host of its own. This is the page about it.

Open the app → See the code →

Pair once, in person

Pairing needs two devices in the same room, each with a camera and a screen, both with the app open. A single device can create an identity and look around, but it cannot finish a ceremony alone, and the vault is sealed with a passphrase that is escrowed nowhere, so forgetting it loses that identity.

One screen shows

The first device paints a signed contact card as an animated QR code: a stream of frames rather than one static square, so the card can be larger than a single code and keeps repainting until the other side has all of it. The fountain-coded optical transport is vendored from decimen.

The other camera scans

The second device points its camera at that screen and reads the frames as they arrive. Then the two swap roles, so each side ends up holding a card the other side showed it in the room, not one a server handed over.

Both people compare six words

Each screen derives six words from what was actually exchanged. The two people say them aloud to each other, and only then does either press "The words match". Words that differ mean something went wrong.

Every screen below is the real app, driven by a machine rather than photographed. No state here is mocked and no conversation is injected: each screen was reached by clicking through the shipped client, and what was real and what stood in for a person is recorded per image.

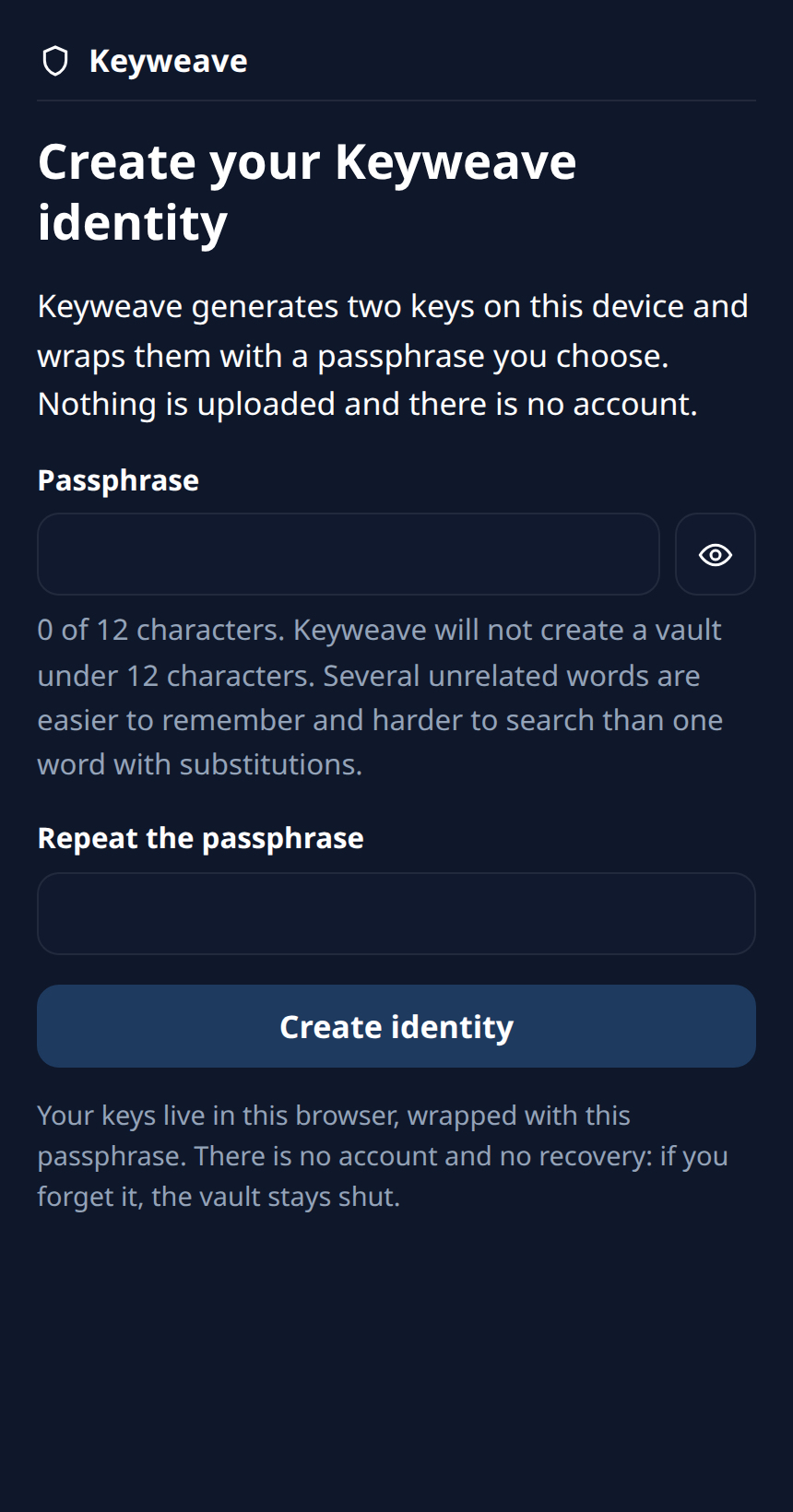

A dark phone-sized screen headed 'Create your Keyweave identity', with a passphrase field, a repeat field and a 'Create identity' button. — First run. Keyweave generates two keys on the device and wraps them with a passphrase you choose: no account, nothing uploaded, and no recovery if you forget it. Captured from the shipped v0.1.2 client, driven headlessly with a throwaway passphrase.

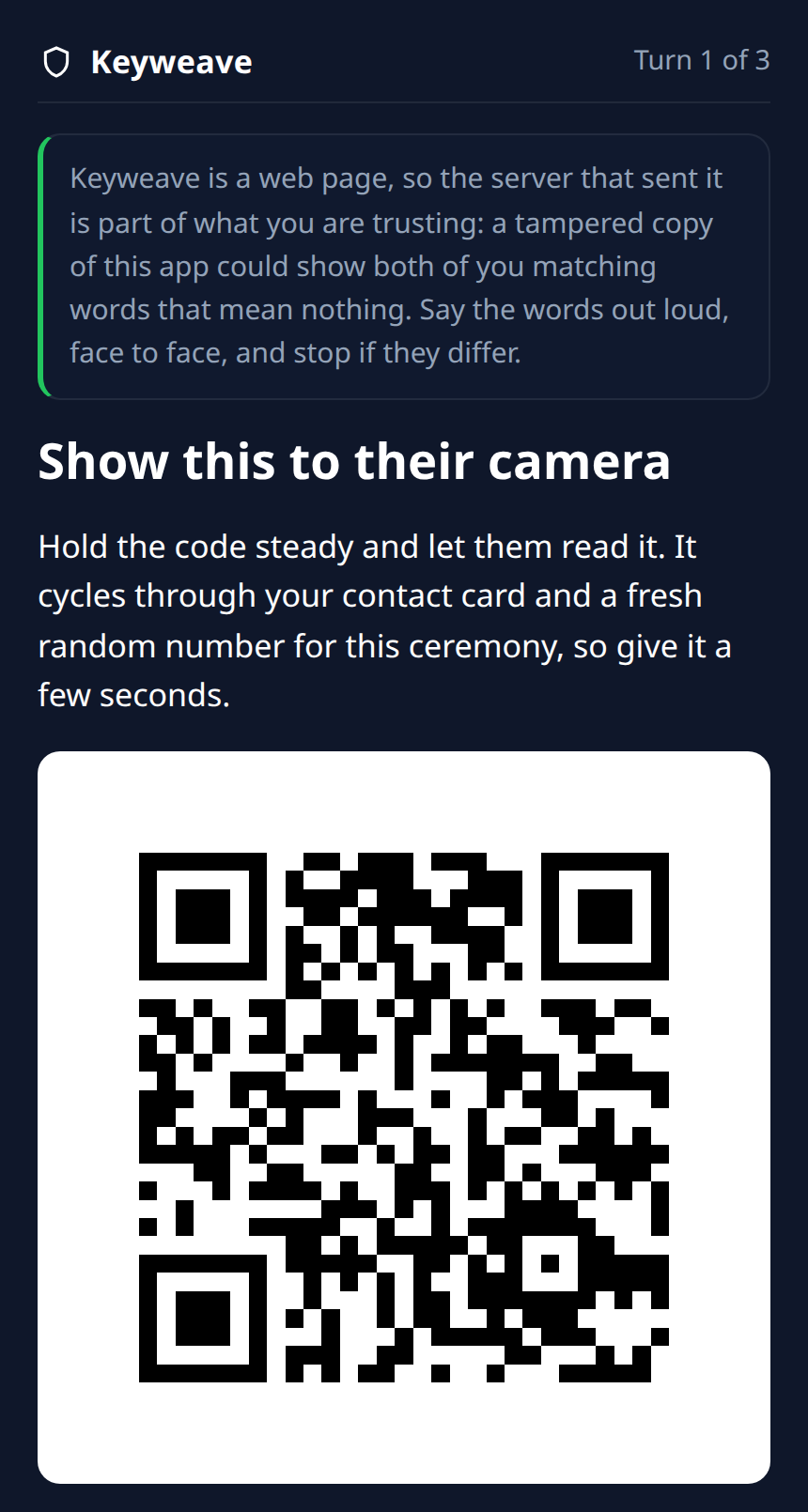

A dark phone-sized screen headed 'Show this to their camera', with a large black and white QR code on a white card. — Turn 1 of 3. One device shows an animated code carrying its signed contact card and a fresh random number for this ceremony. Same headless capture, same throwaway identity.

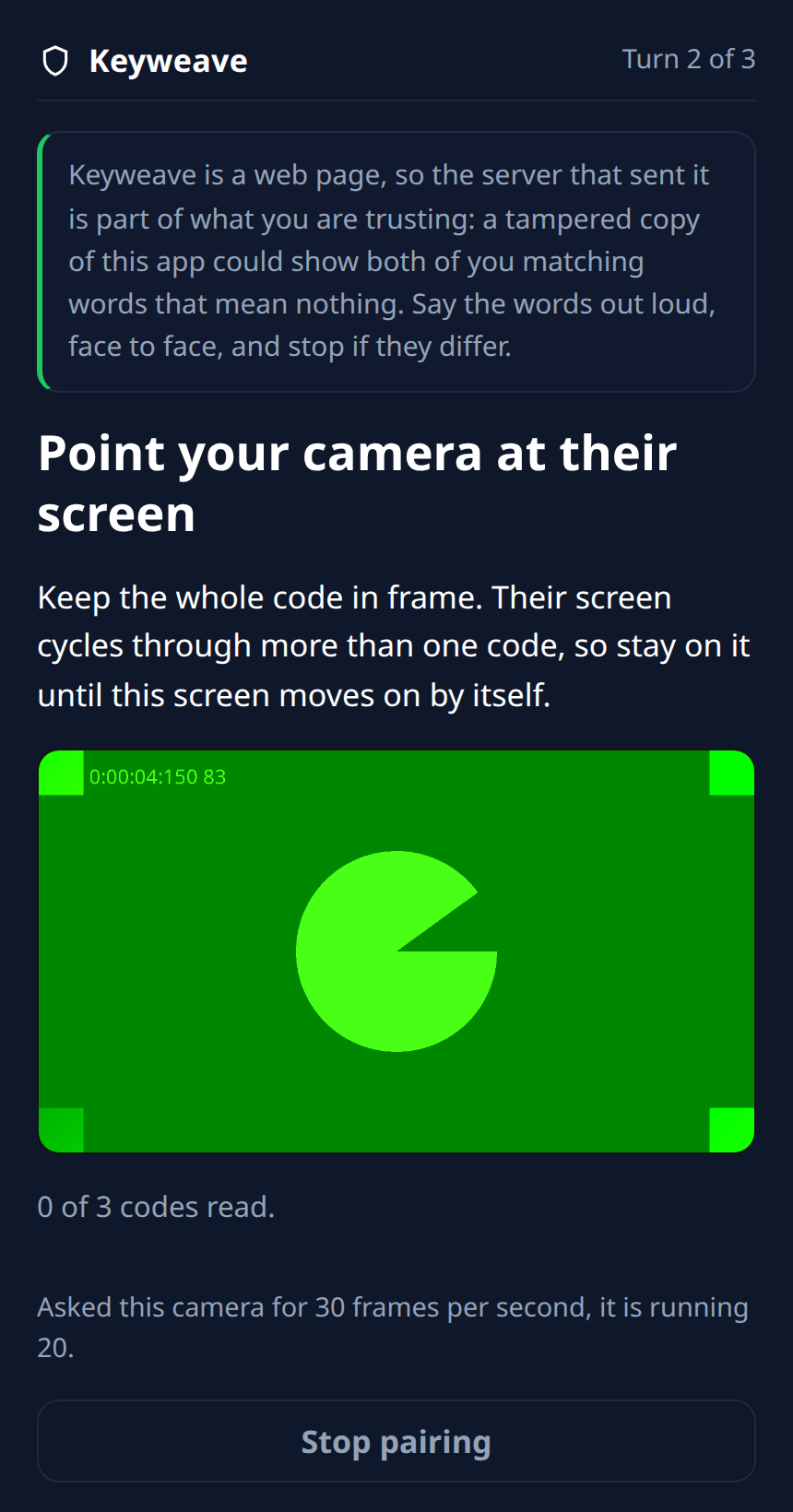

A dark phone-sized screen headed 'Point your camera at their screen', showing a green camera test pattern above the line '0 of 3 codes read.' — Turn 2 of 3. The other device watches that screen and counts the codes it has read. The green pattern is the browser's synthetic test camera, which is what a headless capture has instead of a lens pointed across a table.

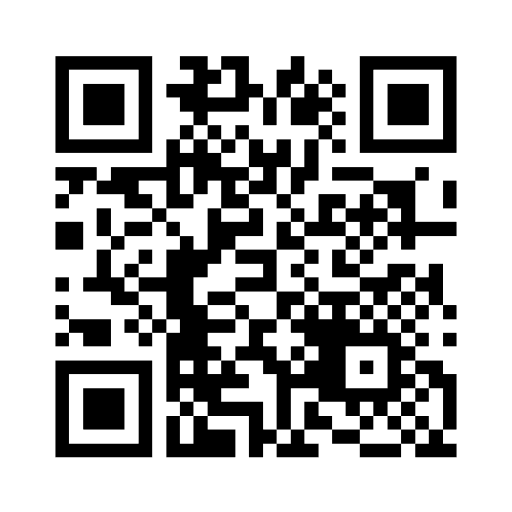

An animated QR code. The pattern changes several times a second, and every few seconds the whole code shifts to a slightly finer grid as the display moves to the next stream. — The code as it actually plays. The app holds each frame for three display refreshes, about 50 ms on a 60 Hz screen, and alternates between two streams every 2.6 seconds, so a camera that misses frames still finishes the turn. This recording samples the running app at 10 frames per second: 96 different codes in 9.6 seconds, and three stream changes. Ask your browser for reduced motion and you get one frame instead.

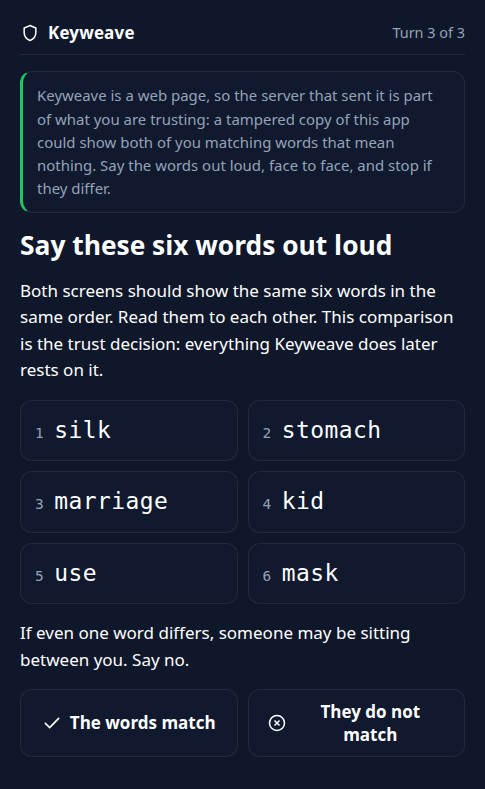

A dark phone-sized screen headed 'Say these six words out loud', listing six numbered words above the buttons 'The words match' and 'They do not match'. — Both screens derive six words from the two keys, and reading them out loud is the trust decision. From a real ceremony run on 2026-08-10 between two browser instances on one machine, passing real codes over a virtual camera rather than two people holding two phones; both screens showed these same six words.

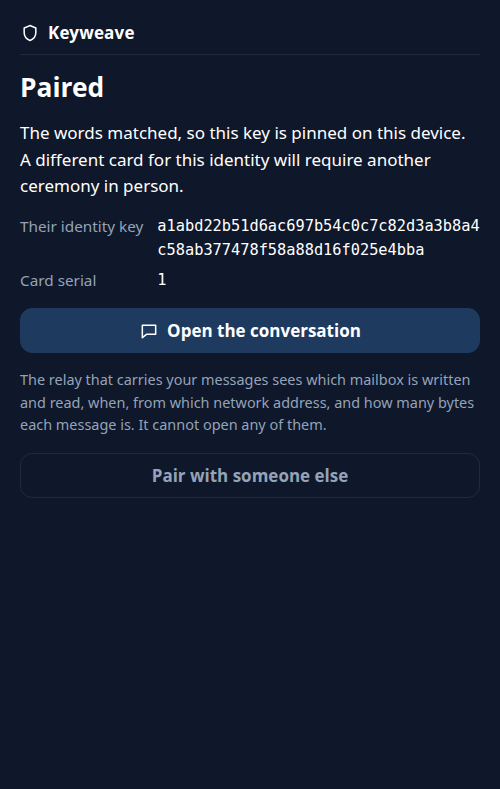

A dark phone-sized screen headed 'Paired', showing the other party's identity key, a card serial of 1, and an 'Open the conversation' button. — After both people agree the words match, that key is pinned on the device, and a different card for the same identity needs another ceremony in person. Same real 2026-08-10 ceremony.

Why a camera beats a server

Encrypting a message is the easy half. The hard half is knowing whose key you encrypted to, and most systems hand that question back to you at the end: compare these safety numbers, trust this signature chain. Keyweave answers it with the room you are standing in. Light crossing the gap between two screens carries no packets, so there is no network position from which to interpose. Physical presence is the authentication.

Two things this does not hide. Pressing Show or Scan reserves a drop box at the relay before anyone has decided anything, so the relay learns that a network address began a pairing at that moment, even for ceremonies the two people then refuse. It learns no identity and reads no plaintext, but a refused pairing is not invisible to it. That is residual R19. And the codes themselves are in the clear: a bystander who films the screen reads no messages, but a filmed code carries the write capability for one of the two drop boxes and can be used to fill it. That is residual R8.

What the relay can and cannot see

It sees

which mailbox is written and which is read
when, and how often
the network address doing it
how big each message is

It never sees

the plaintext of any message
your identity keys
who you are, by name or by account
enough to forge a message it carries

An observer of the relay can therefore link talking mailboxes by timing and network address. That is residual R3, named rather than papered over.

When the words do not match

The app never decides this. It shows both people the six words and waits; a human presses the button. Press the second one and the ceremony ends there, with nothing kept.

the refusal path · product strings, verbatim

Say these six words out loud
They do not match
Stopped: the words did not match
Nothing was saved and no contact was added. Do not retry
this over a call, a photo or a screen share: that is the
situation this check is designed to catch.

The advice in that last line is the point of comparing aloud: a call, a photo or a screen share is exactly the channel an attacker who got between the two devices would offer you next.

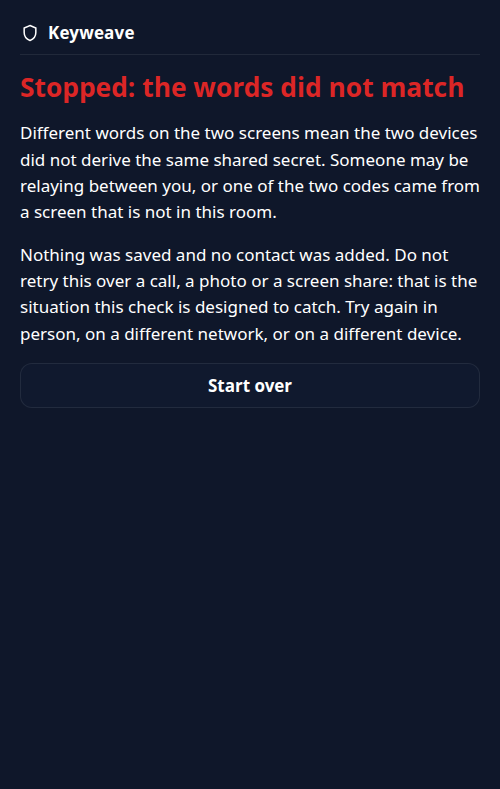

A dark phone-sized screen with a red heading 'Stopped: the words did not match', two paragraphs of explanation, and a 'Start over' button. — What an interception attempt looks like when it is caught: the two screens showed different words, so nothing was saved and no contact was added. From the same day's evidence, a second run in which a third real Keyweave instance sat between the two sides.

Verify what you run

Using the hosted app means trusting the code that origin serves you. A browser re-fetches its JavaScript on every load, and optical pairing does nothing about a malicious bundle: that is residual R1, the top one. What is on offer is not "trust us", it is a procedure.

A release publishes the sha256 of every file in the built bundle, and the signed tag message is the authoritative record of those hashes. The signing key is served from this domain rather than from the host that serves the tag, because a key served by the same host proves nothing. GitHub shows these tags as "Unverified", which is expected: the key is deliberately not registered with that account, so GitHub genuinely cannot check it and says so.

verify a release · in a clone of the repo

curl -fsSL https://localfirstlab.org/keyweave-release-key.asc | gpg --import
git verify-tag v0.1.2
git cat-file -p v0.1.2

KEYWEAVE_RELAY_ORIGIN=https://relay.keyweave.localfirstlab.org \
  scripts/reproduce.sh v0.1.2

The signing key begins D78D894137527792. That prefix is for recognising the key at a glance and nothing else: compare the whole fingerprint, never a prefix or a suffix. The full value is served from this domain and printed in REPRODUCIBLE-BUILD.md, which also explains what a matching hash does and does not prove.

Limits, written down

Twenty-two of them, numbered, each with what it costs and what would close it. The four that decide whether this is the right tool for you:

R1, served code. The integrity of the bundle your browser is handed is not protected by optics. It is the top residual, and the reason the build is reproducible.
R3, metadata. The relay, and anyone watching it, can see which mailboxes talk to each other, when, and from where.
R4, no forward secrecy. A later key compromise can decrypt past messages. A ratchet is v1 work, not v0.
R5, a stolen unlocked device. Out of scope. The at-rest vault helps only against a device that is powered off and locked.

One more worth knowing before you try it: sending is not instant. The local vault is re-sealed either side of the relay call and each seal re-runs the passphrase key derivation, so one successful send costs about 6.3 seconds of computation on the desktop it was measured on, by design. That measurement is R22.

v0 is deliberately small: optical pairing plus sealed-box messaging plus a pull-model mailbox relay, text only. No groups and no multi-device yet, and no export or backup either: the vault lives in one browser profile, and clearing that browser's site data destroys the identity and every conversation with it. The remedy is a new identity and a fresh ceremony in person. All twenty-two residuals and the threat model live in the repo, and neither softens.

Where to go next

Open the app → Read the code → How to report a vulnerability →

MIT licensed. Keyweave sits in the Local First Lab toolbox next to EdgeDancer and lfl-terminal: tools that run on your own hardware and say what they cannot do.
